HY-1704 / HY-2004 Sublimation Printers
1.6m / 1.9m sublimation printers, 4 i3200-A1 heads, up to 110 m²/h - for transfer paper to polyester apparel and soft signage.
Overview
The HY-1704 and HY-2004 are industrial sublimation printers sharing the same four-head Epson i3200-A1 platform and 720 × 1800 dpi engine across two widths - 1.6 m and 1.9 m. They print onto sublimation transfer paper for polyester apparel, soft signage and home-textile production.
Model comparison
| Spec | HY-1704 | HY-2004 |
|---|---|---|
| Print width | 1600 mm | 1900 mm |
| Printheads | 4 × Epson i3200-A1 (CMYK) | 4 × Epson i3200-A1 (CMYK) |
| Speed (2-pass) | 106 m²/h | 110 m²/h |
| Speed (3-pass) | 80 m²/h | 85 m²/h |
| Speed (4-pass) | 53 m²/h | 55 m²/h |
| Speed (6-pass) | 33 m²/h | 35 m²/h |
| Machine size (mm) | 2780 × 800 × 1570 | 3450 × 1300 × 1570 |
| Weight (net / gross) | 280 / 310 kg | 350 / 380 kg |
Key features
- 4 × Epson i3200-A1 heads in CMYK at 720 × 1800 dpi - production-grade industrial printheads for long-run reliability.
- Constant-tension feeding and wide anti-static pinch rollers for stable paper handling on long jobs.
- Front-arc pre-heating and integrated aluminum cleaning station reduce banding and keep nozzles in good condition.
- Heated drying + cooling fans allow continuous high-speed output without paper warping.
Transfer process
Print artwork onto sublimation paper → heat-press onto polyester fabric or sublimation-coated substrate at typically 185–205 °C for 40–60 s (adjust per fabric TDS). Standard for polyester, polyester blends and coated rigid substrates.
Who it’s for
Soft-signage printers, sportswear and swimwear manufacturers, home-textile producers (bedding, cushions, tablecloths) and contract sublimation bureaus needing 1.6–1.9 m roll-to-paper capacity in a single CMYK platform.
For DTF transfer onto cotton and blended fabrics, see the HY-702 60cm DTF printer. For direct-to-fabric R2R printing on textile, see the H-Series R2R printers.
Factory-direct manufacturer · OEM / ODM · in-house R&D and after-sales support
Why Choose H·EASY Sublimation Printing
Quad i3200-A1 printheads · high-speed CMYK
4× i3200-A1 heads in CMYK for real high-speed sublimation production.
Transparent real productivity
HY-1704 / HY-2004 (m²/h): 2-pass 106/110, 3-pass 80/85, 4-pass 53/55, 6-pass 33/35. Clear throughput to plan shifts and jobs.
Constant-tension feeding · wide anti-static rollers
Constant-tension feeding and wide anti-static pinch rollers keep media flat and tracking true.
Front arc pre-heating · fast ink fixing
Front arc pre-heating promotes even ink laydown for consistent density.
Adjustable carriage height ≤ 8 mm · versatile media
≤ 8 mm adjustable carriage height reduces head strikes across media.
Aluminum beam + integrated cleaning station
An aluminum beam with an integrated cleaning station keeps runs reliable and low-maintenance.
Engineered for production

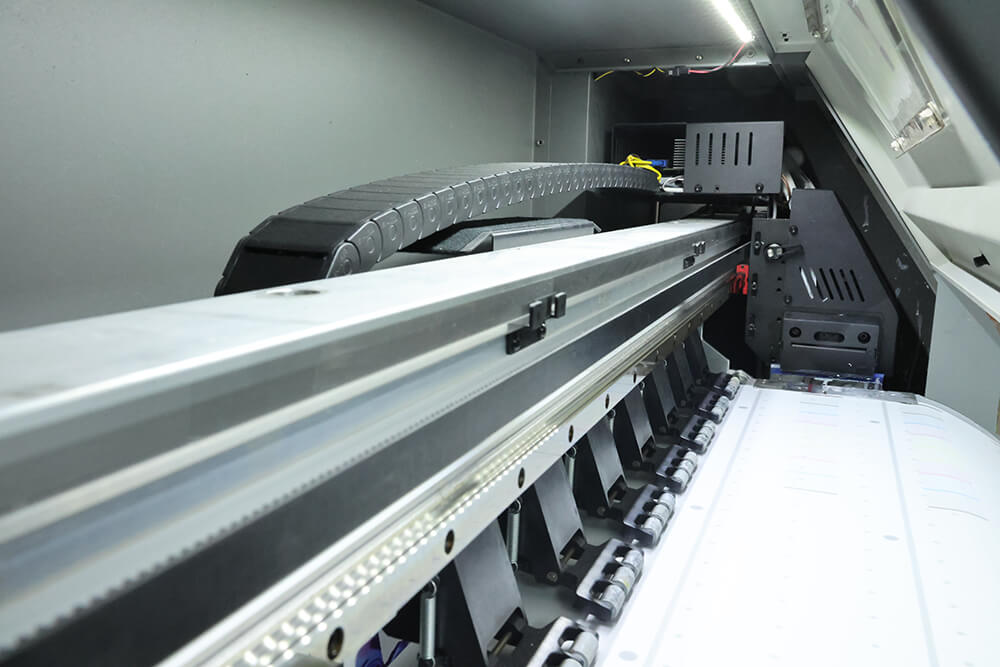

CMYK throughput · four Epson i3200-A1 printheads
- Four i3200-A1 heads provide the shared CMYK print engine for the 1.6 m and 1.9 m models.
- Pass-count options let operators balance transfer-paper throughput against image quality.

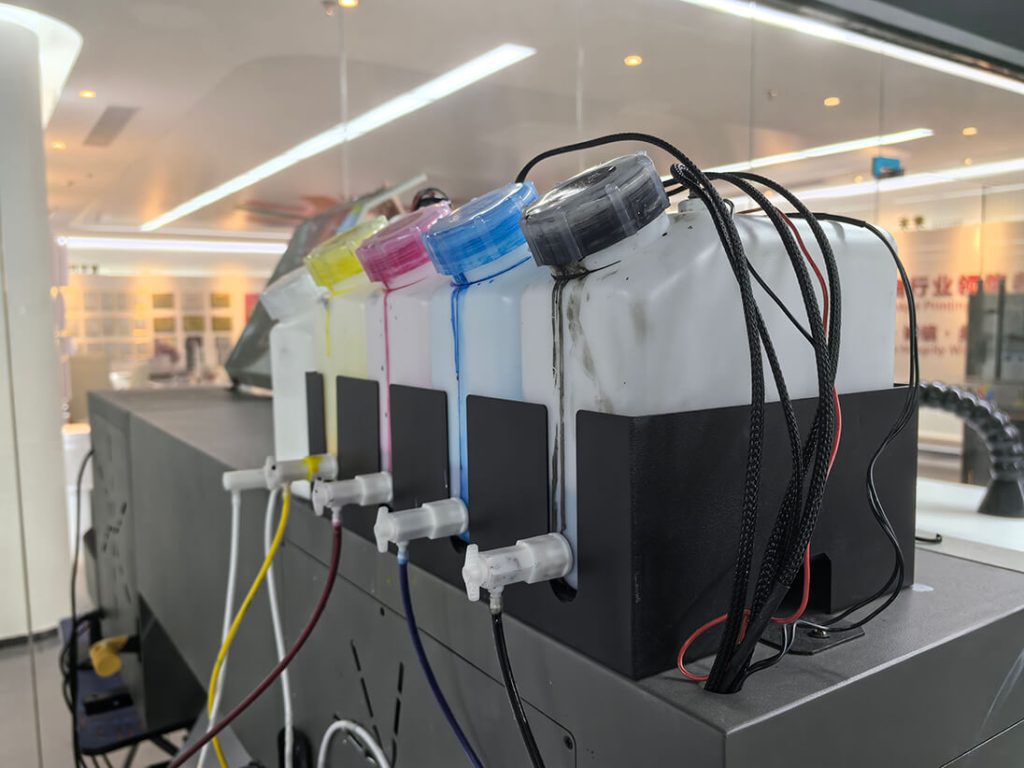

Feeding & heating · stable transfer-paper handling
- Constant-tension feeding, wide anti-static rollers and front-arc pre-heating stabilize long paper runs.
- Integrated cleaning and heated drying support repeatable transfer-paper production.
Where H·EASY HY-1704 Excels
Sublimation transfer paper for polyester apparel, sportswear, soft signage and home textiles.
HY-1704 Specifications
| Specification | HY-1704 |
|---|---|
| Models | HY-1704 (1.6 m) · HY-2004 (1.9 m) |
| Print width | 1600 mm (HY-1704) · 1900 mm (HY-2004) |
| Printheads | 4 × Epson i3200-A1 (CMYK) |
| Resolution | 720 × 1800 dpi |
| Speed (HY-1704) | 2-pass 106 · 3-pass 80 · 4-pass 53 · 6-pass 33 m²/h |
| Speed (HY-2004) | 2-pass 110 · 3-pass 85 · 4-pass 55 · 6-pass 35 m²/h |
| Ink | Sublimation ink (disperse) |
| Drying | Heated drying with cooling fans |
| Media thickness | Up to 3 mm |
| Connectivity | Gigabit Ethernet |
| Machine size (HY-1704) | 2780 × 800 × 1570 mm |
| Machine size (HY-2004) | 3450 × 1300 × 1570 mm |
| Weight (HY-1704) | 280 kg net (310 kg gross) |
| Weight (HY-2004) | 350 kg net (380 kg gross) |
| Power | 3 kW |
| Operating environment | 20–25 °C · 50–60% RH |
