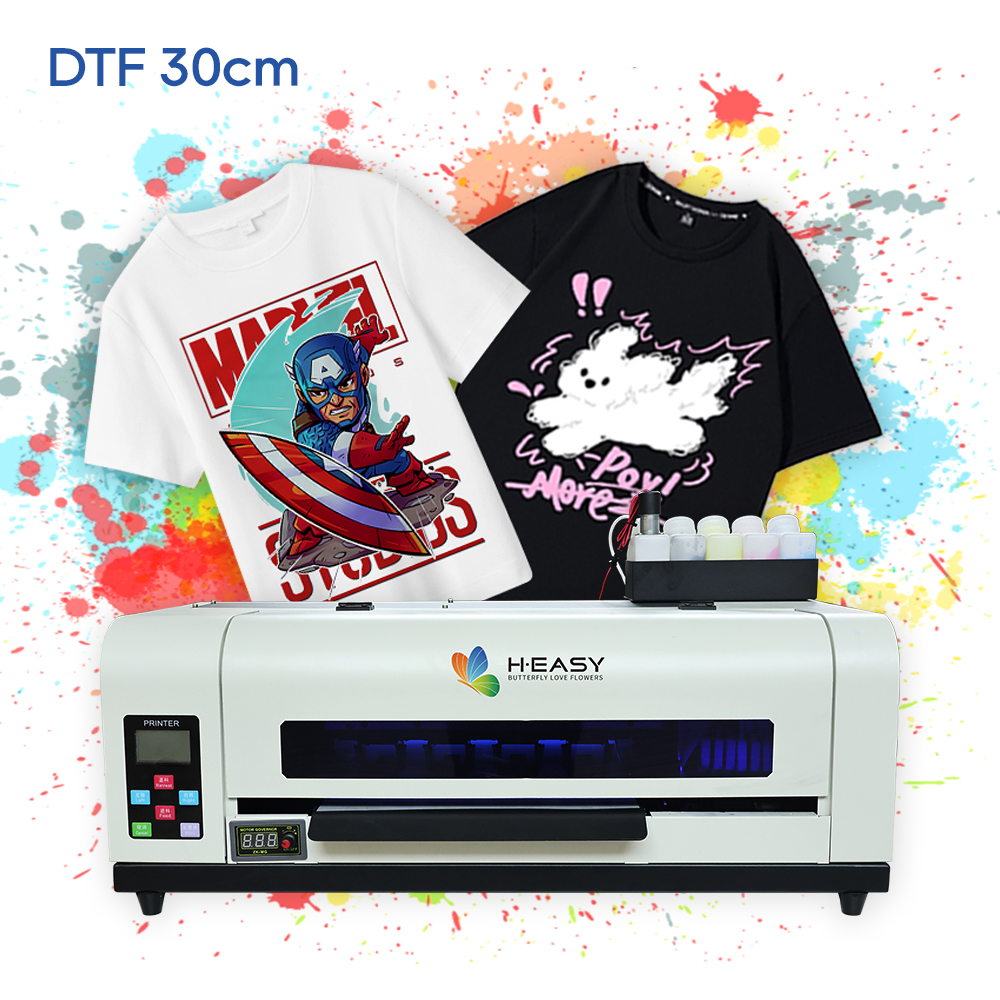

HY-401 30cm Desktop DTF Printer
Single Epson XP600 head, 30cm width, auto white-ink circulation - entry-level DTF for sampling and short runs.
Overview
The HY-401 is a 30 cm desktop direct-to-film printer built around a single Epson XP600 printhead and a CMYK + White ink configuration. It targets A3 on-demand work - sampling, custom apparel one-offs, and short DTF runs - where the priority is print quality, low waste and predictable daily uptime rather than volume throughput.
Key features
- Single Epson XP600 head with variable-dot output for smooth gradients and crisp micro-text. CMYK + White stacking is managed in the RIP for strong coverage on dark fabrics.
- 300 mm print width sized for A3 jobs; reference throughput ≈ 1.2 m²/h at 6-pass, design-dependent.
- Auto white-ink stirring and circulation, with scheduled purging and capping, reduces white-ink sedimentation during idle periods - the most common failure mode on entry-level DTF setups.
- Auto-suction platen and one-click forward/back film feed keep film flat and registered, reducing wrinkles, skew and banding on long jobs.
- MAINTOP / PhotoPRINT RIP support with ICC and density-profile color workflows; runs on Windows 7 / Windows 10.
- No weeding, no screens, low waste - a DTF workflow that’s faster to set up than DTG for short runs and more flexible than screen printing on small orders.
Who it’s for
Custom-apparel shops, print bureaus, gift personalizers and contract printers starting in DTF or needing a dedicated sampling machine alongside larger production gear. Typical applications: T-shirts, hoodies, tote bags, caps and customized gift items.
Need higher throughput on the same DTF workflow? See the HY-702 60cm production DTF printer - dual Epson i3200-A1 heads and an integrated powder shaker for volume work.
Factory-direct manufacturer · OEM / ODM · in-house R&D and after-sales support
Why Choose H·EASY DTF Printing
Epson XP600 variable droplet printhead
Epson XP600 variable-dot output delivers smooth gradients and crisp micro-text with consistent quality on long prints.
Stable CMYK+White printing workflow
Supports a CMYK+White DTF workflow with controlled stacking of white and color for strong coverage and reliable registration.
30 cm printing width
300 mm width for A3 jobs; reference 6-pass ≈ 1.2 m²/h (design and workflow dependent).
Smoother feeding · one-touch reverse & vacuum platform
One-click forward/back feeding and an auto-suction platen keep film flat, reducing wrinkles, skew and banding.
Easy to operate and maintain
Auto stirring & circulation with scheduled purging/capping minimize settling and clogging; daily maintenance is minutes-level.
Production on demand · profitable even for single piece
No weeding, no screens and lower waste; templates and queues speed repeat jobs and keep TCO predictable.
Engineered for production

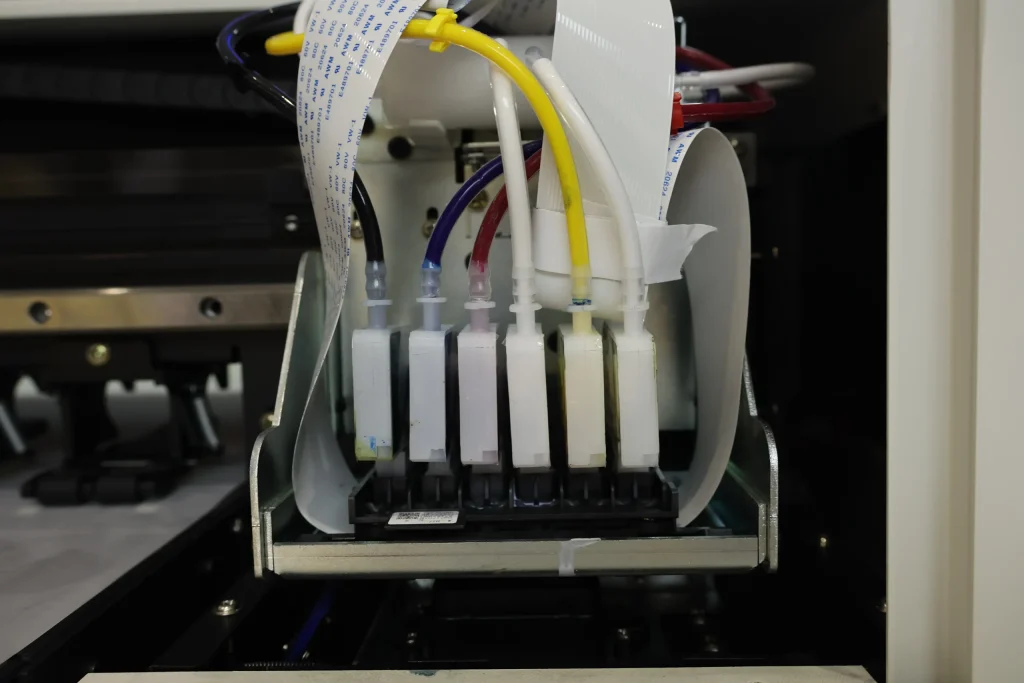

XP600 variable-dot · fine detail with long-run stability
- Single Epson XP600 head with variable dot for smooth tones and clean edges on A3 work.
- CMYK+White layered workflow for high-opacity transfers with fewer registration artifacts.
- Multiple resolutions (e.g. 360×360 / 720×2400 / 1440×2400 dpi) to balance speed vs. quality.

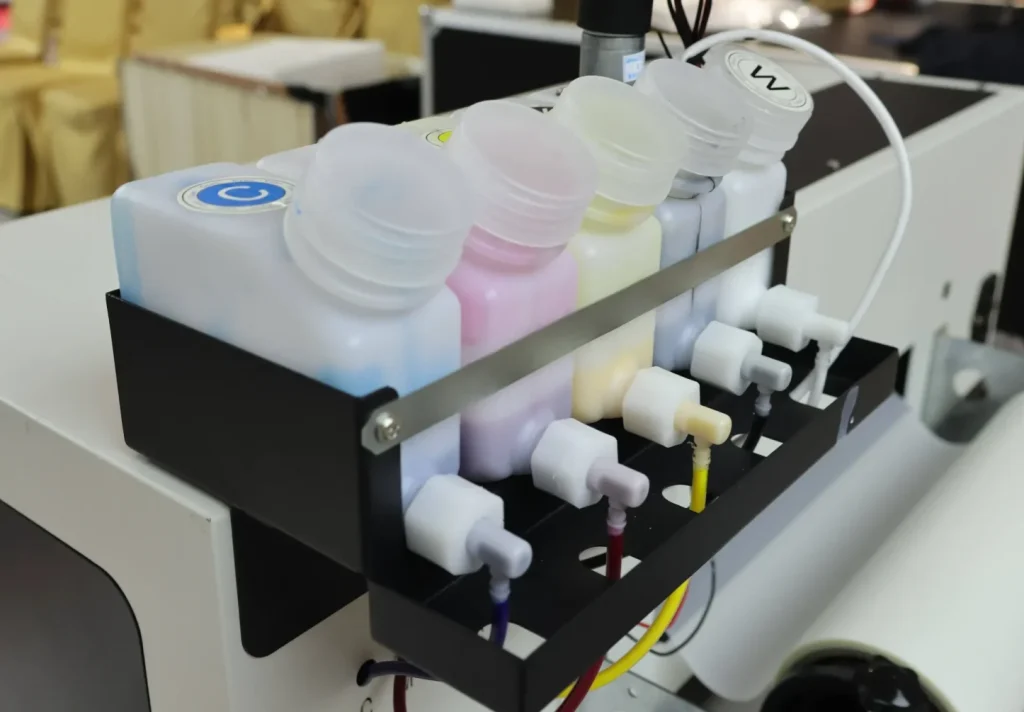

Auto white-ink stirring & circulation · smart maintenance
- Continuous stirring & circulation plus scheduled purging/capping reduce settling and clogging.
- Simple controls and compatibility with MAINTOP / PhotoPRINT (ICC or density profiles).
- Centralized service points; daily routines take minutes, cutting downtime and waste.

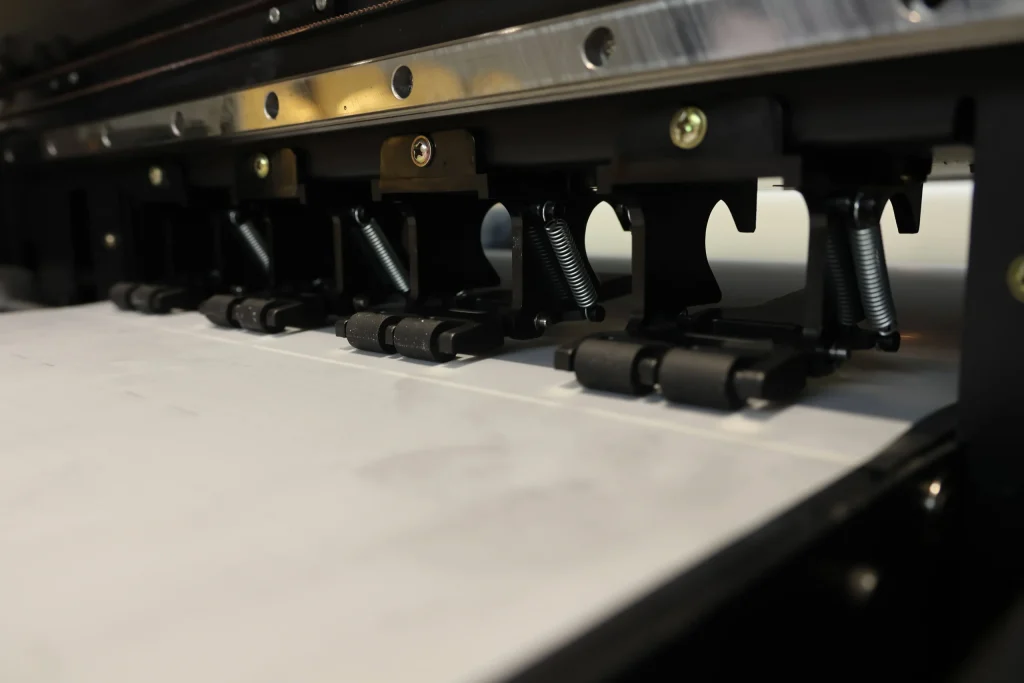

Compact 30 cm DTF · one-click fwd/back · auto-suction platen
- 300 mm width with ~1.2 m²/h at 6-pass as a reference for sampling and short runs (design dependent).
- One-click forward/back for feed and rewind; auto-suction platen keeps film flat to avoid wrinkles and banding.
- No weeding or screens; templates and queues shorten order-to-ship time and control per-piece cost.
Where H·EASY HY-401 Excels
A3 desktop DTF for custom apparel and on-demand short runs, any fabric and color base.
HY-401 Specifications
| Specification | HY-401 |
|---|---|
| Print width | 300 mm (30 cm) |
| Printheads | 1 × Epson XP600 |
| Nozzles per head | 180 × 8 = 1440 |
| Ink configuration | CMYK + White |
| White ink system | Auto stirring & circulation with scheduled purging/capping |
| Print speed | ≈ 1.2 m²/h at 6-pass (design-dependent) |
| Reference ink consumption | 7.4 g/m² (2026.4 archive reference; coverage and mode dependent) |
| Resolution | Up to 1440 × 2400 dpi (also 360 × 360, 720 × 2400) |
| Platform | Auto-suction platen, one-click forward/back film feed |
| RIP software | MAINTOP / PhotoPRINT |
| Color management | ICC or density profile |
| Operating system | Windows 7 / Windows 10 |
| Power | AC 110 / 220 V · 50 / 60 Hz · 50 W |
| Machine size (L × W × H) | 1000 × 500 × 900 mm |
| Weight | 28 kg net (48 kg gross, crated) |
| Operating environment | 10–38 °C · 40–90% RH |
