HY-4050 DTG Printer
A2 40×50cm platen, 2 Brother industrial piezo heads and independent CMYK + White channels for cotton apparel production.
Overview
The HY-4050 is an A2-format direct-to-garment (DTG) printer with two Brother industrial piezo printheads (3.5 pl minimum droplet), a 400 × 500 mm platen and independently controlled CMYK + White channels. It is positioned for short-run cotton and cotton-rich apparel such as T-shirts, hoodies, polos and totes.
Key features
- Two Brother industrial piezo heads at 3.5 pl minimum droplet for crisp gradients and fine type on garments.
- Independent CMYK + White channels for separate control of color and the white underbase workflow.
- A2 platen (400 × 500 mm) sized for hoodies, large jerseys and oversize prints.
- 1,500 ml documented ink capacity for the water-based pigment ink system.
- Up to 10 mm garment clearance with three quick height levels for thicker garment areas.
Reference print times
| Garment / fabric | A4 | A3 |
|---|---|---|
| Light fabric | ≈ 50 s | ≈ 88 s |
| Dark fabric | ≈ 64 s | ≈ 103 s |
Who it’s for
Small and growing apparel businesses: custom-apparel shops, print-on-demand sellers, contract printers and in-house brand teams who run cotton and cotton-blend garments and need reliable one-pass color + white on dark stock. The A2 platen and short-run workflow suit teams printing to order rather than holding blank inventory.
Pair the HY-4050 with a DTF transfer workflow for non-cotton substrates: see the HY-702 60cm DTF printer or the HY-401 30cm DTF printer. For 1.8–2.6 m roll-to-roll textile output, see the H-Series R2R printers. To run DTG and DTF together as one production line, see the 60cm DTF + DTG solution.
Factory-direct manufacturer · OEM / ODM · in-house R&D and after-sales support
Engineered for production

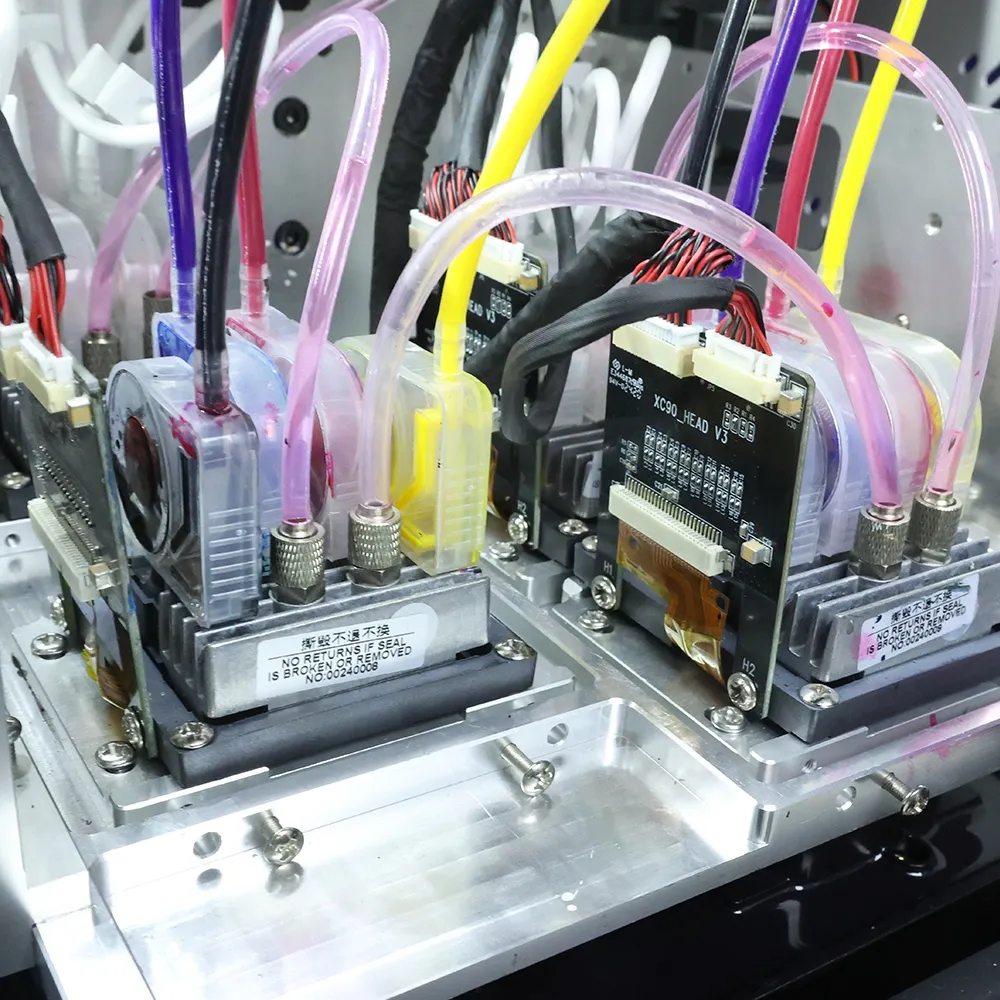

Brother print engine · stable tone · sharp details
- 2 × Brother industrial piezo, minimum droplet 3.5 pl for smooth tones and crisp edges.
- Independent white and CMYK channels for a controlled dark-garment workflow.

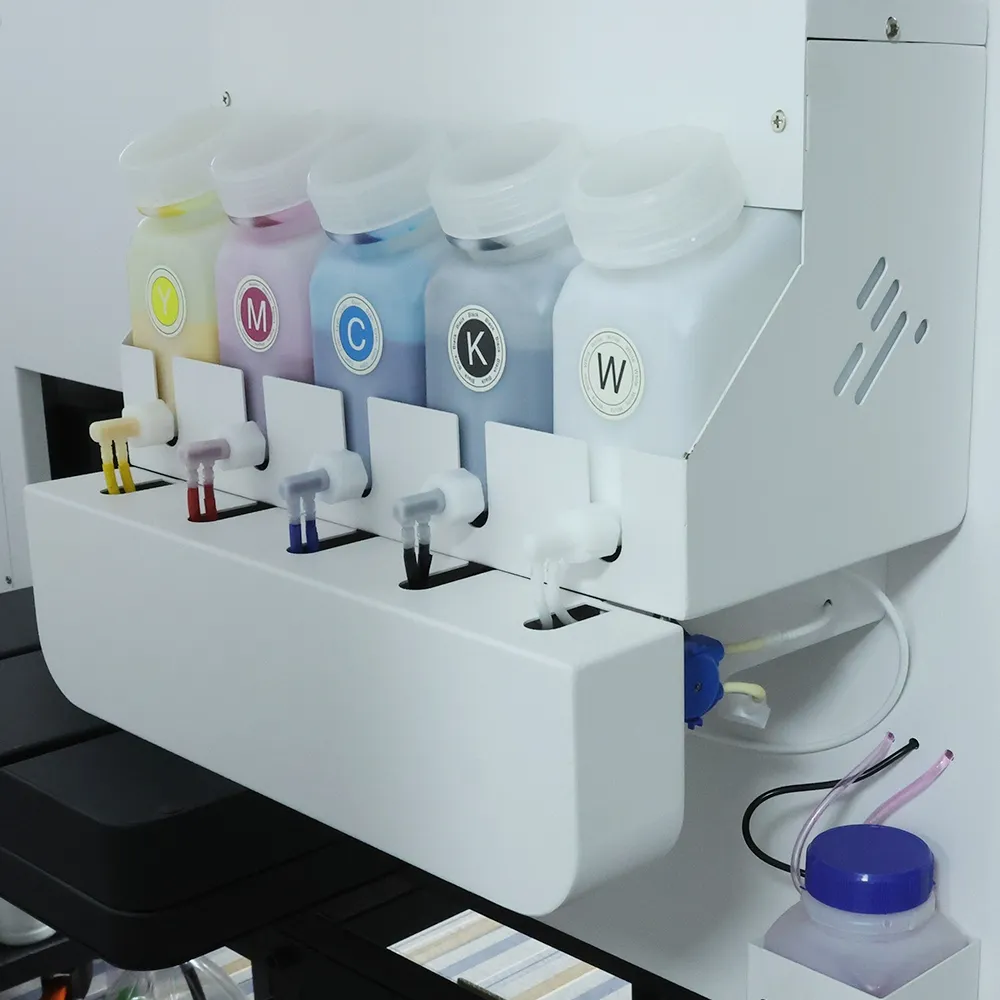

Ink system · independently controlled channels
- CMYK + White (independently controlled color and white channels)
- 1,500 ml documented onboard ink capacity.

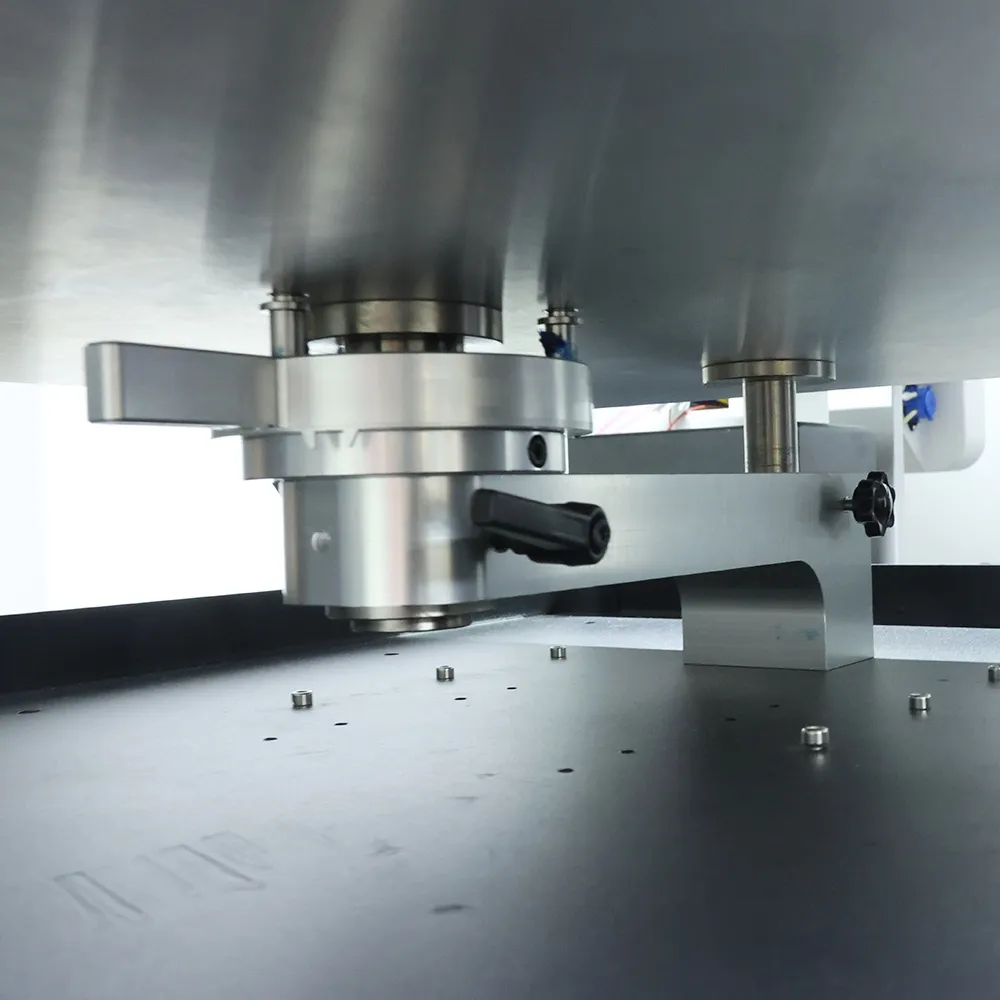

A2 40×50 platen · three height levels · ≤ 10 mm
- 400 × 500 mm (A2 · 40 × 50 cm)
- Up to 10 mm with three-level height setting
Where H·EASY HY-4050 Excels
Direct-to-garment printing on cotton and cotton-rich apparel with a soft hand-feel.
HY-4050 Specifications
| Specification | HY-4050 |
|---|---|
| Platen size | 400 × 500 mm (A2 · 40 × 50 cm) |
| Printheads | 2 × Brother industrial piezo, minimum droplet 3.5 pl |
| Ink type | Water-based pigment ink |
| Ink configuration | CMYK + White (independently controlled color and white channels) |
| Ink capacity | 1,500 ml |
| Print direction | Bi-directional / uni-directional |
| Speed (A4) | Light garment ≈ 50 s · dark garment ≈ 64 s |
| Speed (A3) | Light garment ≈ 88 s · dark garment ≈ 103 s |
| Max garment thickness | Up to 10 mm with three-level height setting |
| Interface | Gigabit NIC |
| Operating environment | 15–25°C · 40–60% RH |
| Machine size (W × D × H) | 1473 × 1126 × 817 mm |
| Weight | 95 kg |
| Power | AC 100–240 V · 50/60 Hz · 140 W running / 100 W standby |
