What is the print width of the HY-702?

The HY-702 prints up to 600 mm (60 cm) wide, suitable for production-scale DTF transfer output.

Does the HY-702 include a powder shaker?

Yes. The HY-702 has an integrated, inline powder shaker, so powder application and curing happen in one pass without a separate machine.

How much does the HY-702 cost?

The HY-702 is quoted by configuration rather than sold at a fixed list price - the final quotation depends on the shaker and dryer setup, RIP, spares package and shipping destination. As a reference point, our 60cm DTF printer buying guide puts production-class 60 cm machines with dual i3200-A1 heads and an inline shaker at $8,000-$15,000, with high-volume automated lines reaching $15,000-$30,000+. Send your fabric mix and output target for a configuration-specific quote.

How does the HY-702 prevent white ink clogging?

The HY-702 uses the HyCIRC™ white-ink circulation system, which keeps white ink moving through the line to reduce sedimentation and clogging during idle periods.

What is the difference between the HY-702 and the HY-401?

The HY-401 is a 30 cm desktop machine with a single Epson XP600 head, built for sampling and short runs. The HY-702 is a 60 cm industrial machine with dual Epson i3200-A1 heads and an integrated inline powder shaker, built for volume production. Choose the HY-401 for one-offs and prototyping and the HY-702 for daily production output.

Which fabrics can the HY-702 print on?

As a DTF transfer printer, the HY-702 prints onto PET film that bonds to virtually any fabric - cotton, polyester, blends, nylon and canvas, light or dark - with no garment pretreatment. Adhesive powder is applied and cured inline in a single pass before heat-pressing.

Dual Epson i3200-A1 heads · 60 cm production · integrated powder shaker & mesh-belt oven · white-ink circulation · low maintenance

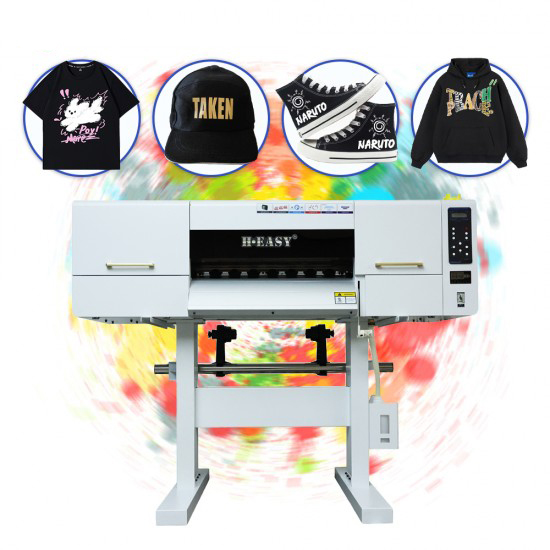

HY-702 60cm Industrial DTF Printer

Dual i3200-A1 printheads, integrated powder shaker, built for volume production.

Request a demo View specifications

Overview

The HY-702 is a 60cm industrial direct-to-film printer, engineered for print shops and contract manufacturers scaling beyond entry-level output. Its dual Epson i3200-A1 printheads and integrated powder shaker deliver a continuous print-to-cure workflow in a single machine.

Key features

Dual i3200-A1 printheads for production throughput at 600mm width.
Documented 2026.4 reference output of 9.6 m²/h at 4-pass and 6.4 m²/h at 6-pass. Actual sellable output depends on artwork coverage, print mode, film and complete-line settings.
Reference ink consumption of 12.1 g/m² for the archived configuration. White density, artwork coverage and mode change actual consumption.
HyCIRC™ white-ink circulation keeps white ink moving to reduce clogging and sedimentation - a common failure point on high-white-coverage DTF work.
Integrated powder shaker applies and cures adhesive powder inline, removing a separate manual step and the floor space a standalone shaker requires.

Who it’s for

B2B production scenarios: custom apparel businesses moving from desktop to industrial volume, contract printers, and textile manufacturers across Bangladesh, India, Turkey, and Southeast Asia who need reliable daily output.

Before sizing the complete line, use the DTG vs DTF ROI calculator to estimate unit cost, monthly net profit and equipment payback from your own labor, consumables and sellable daily output. If you are weighing DTF against DTG for a mixed order book, the 60cm DTF + DTG solution compares both routes side by side.

300+Printers shipped

70+Countries served

42+Patents

1-YearWarranty · extendable

Factory-direct manufacturer · OEM / ODM · in-house R&D and after-sales support

Why Choose H·EASY DTF Printing

Dual Epson i3200-A1 heads

Dual Epson I3200-A1 heads with variable dot for smooth gradients and crisp edges; aluminum beam + silent rails ensure long-run stability.

White and color printing · high-hiding PET film

Independent CMYK/White channels for one-pass high-opacity white and vivid color on PET film.

Sampling and short-run production

60 cm productivity across 4/6/8 passes, balanced for sampling and short-run production.

White-ink circulation & bulk tanks

White-ink circulation & bulk tanks with timed purging/capping reduce clogging and keep TCO predictable.

Powder dosing & shake-off · even, anti-caking

Fine hot-melt powder with roller dosing/shake-off gives even, anti-caking coverage; a mesh-belt oven with zoned pre-heat, melt and hold ensures clean, consistent curing.

Easy controls · automatic lifting and cleaning

Auto-lift capping/cleaning station simplifies upkeep; anti-static pinch rollers keep film feeding stable.

Engineered for production

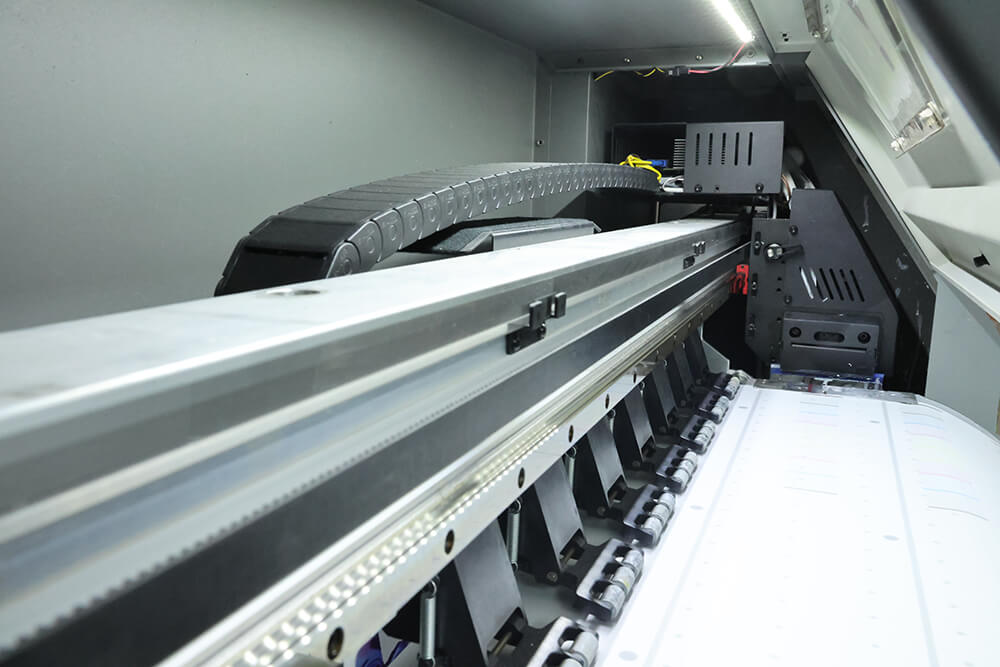

I3200-A1 industrial printheads · stable tone · sharp details

Dual Epson I3200-A1 heads with variable dot deliver smooth gradients and crisp micro-text with long-run consistency.
Independent CMYK/White channels enable high-opacity white and vivid color on PET film.
Auto-lift capping/cleaning station reduces manual intervention and unplanned downtime.

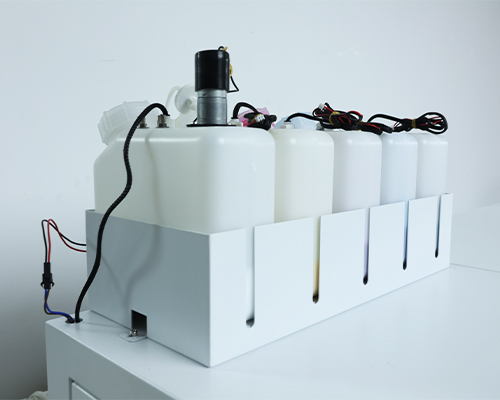

White-ink circulation · bulk ink supply · less maintenance

Continuous white-ink circulation & agitation with timed purging/capping reduces settling and clogging.
Large continuous ink supply supports long runs and keeps refills low for predictable TCO.
Centralized service access with minutes-level daily routines; fast to train and maintain.

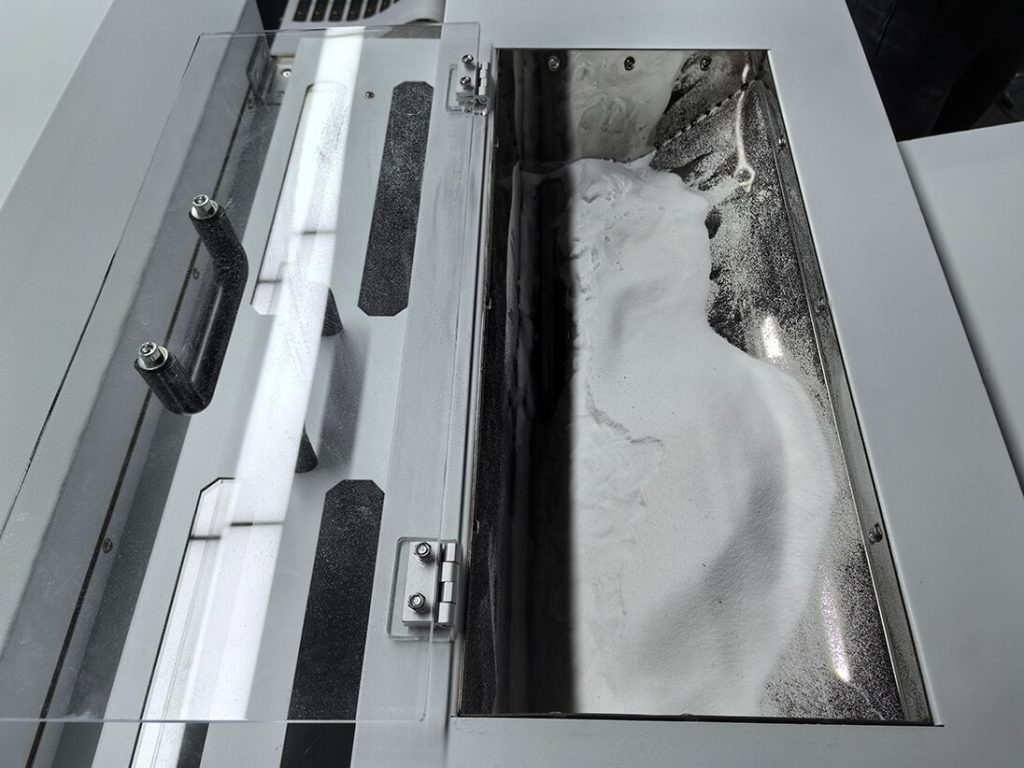

Powdering & shake-off · mesh-belt oven curing · cleaner transfer film

Compatible with hot-peel and cold-peel; hot-peel releases immediately after pressing for faster throughput.
Easier for beginners than warm/cold-peel, with no timing guesswork that can lift the print.
Upgraded hot-peel film engineered for strong wash-cycle durability without cracking under recommended settings.

Where H·EASY HY-702 Excels

60 cm DTF transfers press onto any fabric and any color base, from apparel to accessories.

White underbase, Opaque base layer before the color pass — **White underbase** Opaque base layer before the color pass

Finished DTF transfer, Color layer registered over the white base — **Finished DTF transfer** Color layer registered over the white base

T-shirts, Light and dark garment production — **T-shirts** Light and dark garment production

Hoodies, Large front and back graphics — **Hoodies** Large front and back graphics

Caps & headwear, Transfers onto curved surfaces — **Caps & headwear** Transfers onto curved surfaces

Denim, Jackets and structured garments — **Denim** Jackets and structured garments

Sneakers, Decorated footwear panels — **Sneakers** Decorated footwear panels

Totes & bags, Canvas and cotton carriers — **Totes & bags** Canvas and cotton carriers

Teamwear, Uniforms and workwear — **Teamwear** Uniforms and workwear

HY-702 Specifications

Specification	HY-702
Print width	600 mm (60 cm)
Printheads	2 × Epson i3200-A1
Reference throughput	4-pass 9.6 m²/h · 6-pass 6.4 m²/h (2026.4 configuration)
Printer power	700 W
Reference ink consumption	12.1 g/m² (coverage and mode dependent)
White ink system	HyCIRC™ continuous circulation
Powder shaker	Integrated, inline
Ink configuration	CMYK + White

Compare Related H·EASY Printers

Technical support

H·EASY Technical Support

One-year warranty (extendable)

Standard 12-month coverage on the core machine, with optional 24/36-month extended care.

Installation & onboarding

Step-by-step video and PDF guides for setup, calibration and your first print.

Knowledge base & troubleshooting

Quick guides for common issues, with checklists and fixes.

Online remote guidance

Engineers provide real-time diagnosis and tuning via WhatsApp, Zoom or AnyDesk.
