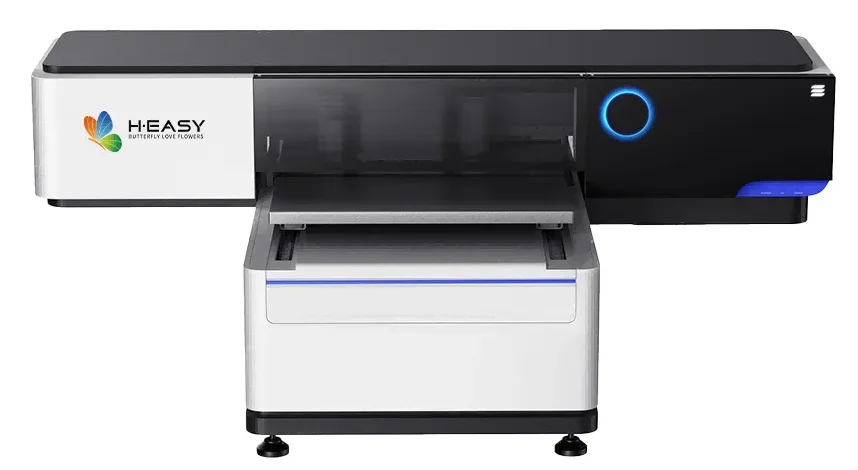

HY-6090 UV Flatbed Printer
The HY-6090 is a 600 × 900 mm UV flatbed printer with a 3-head CMYK + White + Varnish architecture, Epson i3200-U1 or i1600-U1 engines and LED-UV curing. It prints one-pass color, white underbase and varnish directly onto glass, acrylic, wood, ceramics, metal and 3C casings up to 100 mm thick, plus cylinders from Ø30–120 mm with the optional rotary jig.
Overview
The HY-6090 is a 600 × 900 mm UV flatbed printer built around a three-head architecture (color / white / varnish) with optional Epson i3200-U1 or i1600-U1 engines and LED-UV curing. It prints directly onto rigid substrates - glass, acrylic, wood, ceramics, metal, plastics - with one-pass CMYK + White + Varnish.
Key features
- Three-head color / white / varnish architecture for one-pass white underbase plus color and clear varnish.
- Dual engine option - Epson i3200-U1 (production, 9 m²/h at 4-pass) or i1600-U1 (entry, 5 m²/h at 4-pass).
- 600 × 900 mm flatbed with 100 mm standard Z-axis height (150 mm optional) fits gift boxes, nameplates and small-format packaging.
- Optional rotary jig prints cylindrical objects from Ø 30–120 mm.
- LED-UV curing with low energy consumption and slow lamp decay - good for heat-sensitive substrates.
- Spot or full varnish for gloss, scratch resistance and matte finishes.
Substrates
| Material | Notes |
|---|---|
| Glass | Primer or plasma improves adhesion |
| Acrylic | Direct print; mind static control |
| Wood | Direct print; condition the surface for best penetration |
| Ceramics | Primer often required |
| Metal sheets | Primer / plasma for difficult alloys |
| PVC / plastics | Pre-treatment per material TDS |
| 3C device casings | Direct or with primer per case material |
Applications
- 3C product casings and nameplates
- Gift boxes and packaging
- Signage and industrial labels
- Golf accessories and personalized gifts
- Cups, bottles and cylindrical objects (with rotary jig)
Who it’s for
Decoration printers, gift personalizers, sign shops, contract industrial labelers and 3C accessory makers needing rigid-substrate UV flatbed output with one-pass white and varnish.
For UV-DTF transfers as an alternative to flatbed (lower per-unit cost on runs), see the HY-702 UV 65cm UV-DTF printer.
Factory-direct manufacturer · OEM / ODM · in-house R&D and after-sales support
Why Choose H·EASY UV Flatbed Printing
3-head CMYK+W+V printing
3-head CMYK+W+V in one pass - high-opacity white, vivid color, protective / spot varnish.
Dual printhead platforms
Choose i3200-U1 or i1600-U1 to balance throughput and cost.
Transparent real productivity
Throughput at a glance - 9/7/5 m²/h (i3200-U1) vs 5/4/3 m²/h (i1600-U1).
Cylindrical printing support (Ø30–120 mm)
Rotary tooling prints cylinders Ø30–120 mm - cups, bottles, vape tanks, etc.
Wide material compatibility
Prints on glass, acrylic, wood, ceramics, metal sheets, PVC / plastics, 3C casings (primer when required).
Easy operation & maintenance
Auto-lift cleaning, low-heat LED-UV, standard file formats; friendly environment window 20–28 °C / 40–60% RH.
Engineered for production

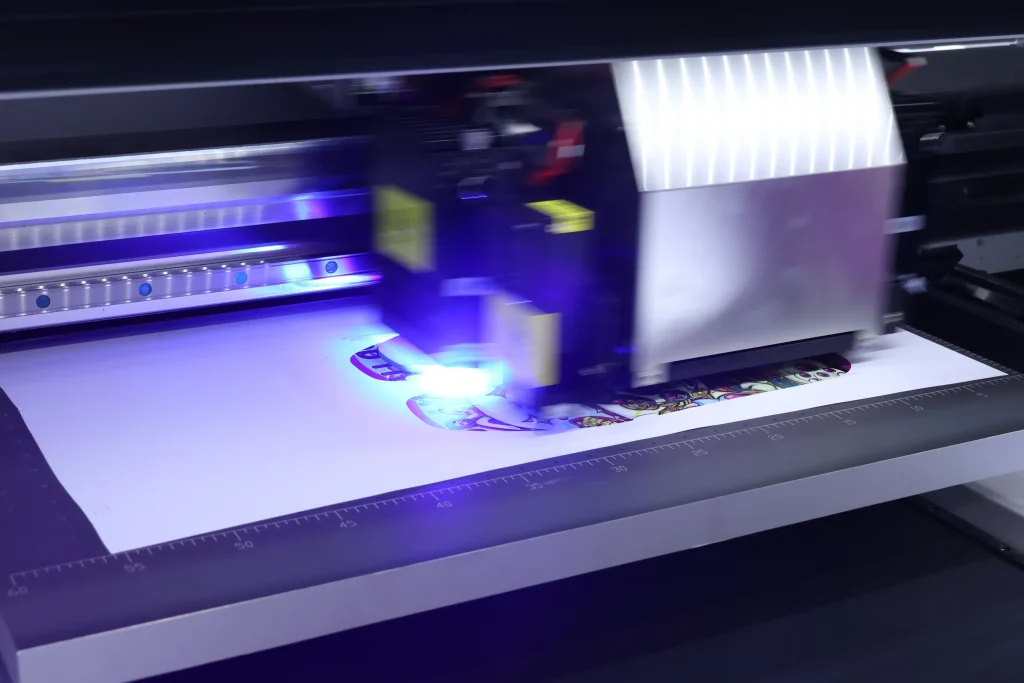

3-head architecture · one-pass CMYK+W+V
- 3-head CMYK+W+V in one pass - high-opacity white, vivid color, protective / spot varnish.
- Choose i3200-U1 or i1600-U1 to balance throughput and cost.
- Throughput 9/7/5 m²/h (i3200-U1) vs 5/4/3 m²/h (i1600-U1).

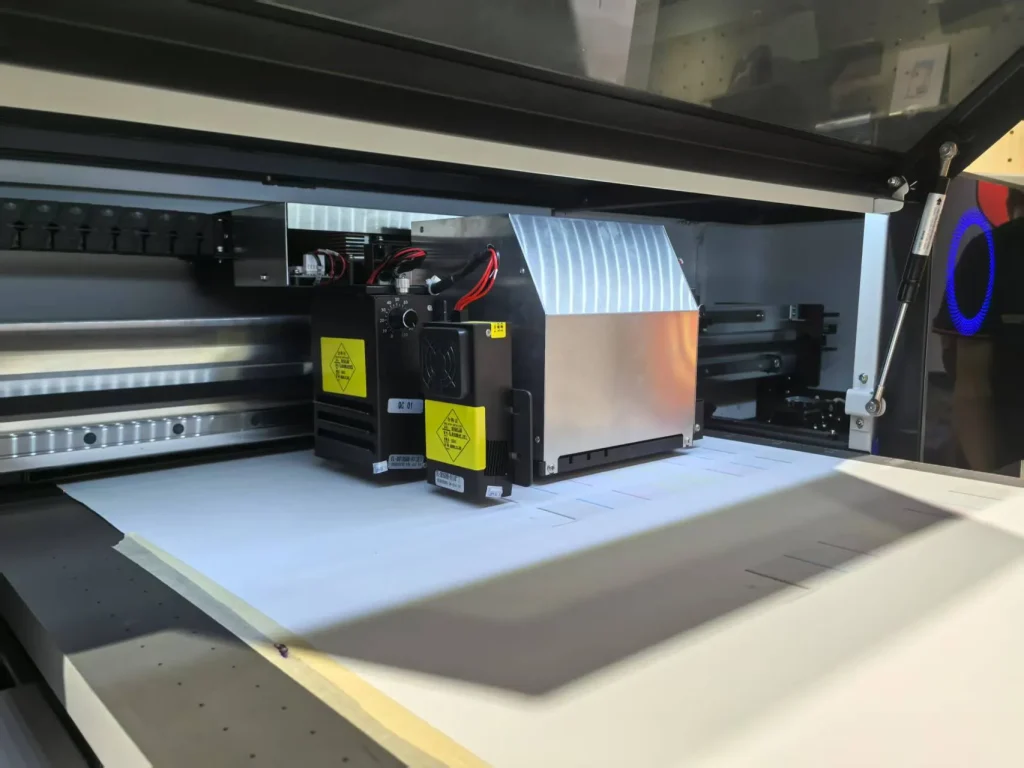

Flat & cylinder in one · 60×90 bed + Ø30–120 rotary
- 60×90 cm flatbed plus rotary tooling for cylinders Ø30–120 mm - cups, bottles, vape tanks.
- Prints glass, acrylic, wood, ceramics, metal sheets, PVC / plastics and 3C casings (primer when required).

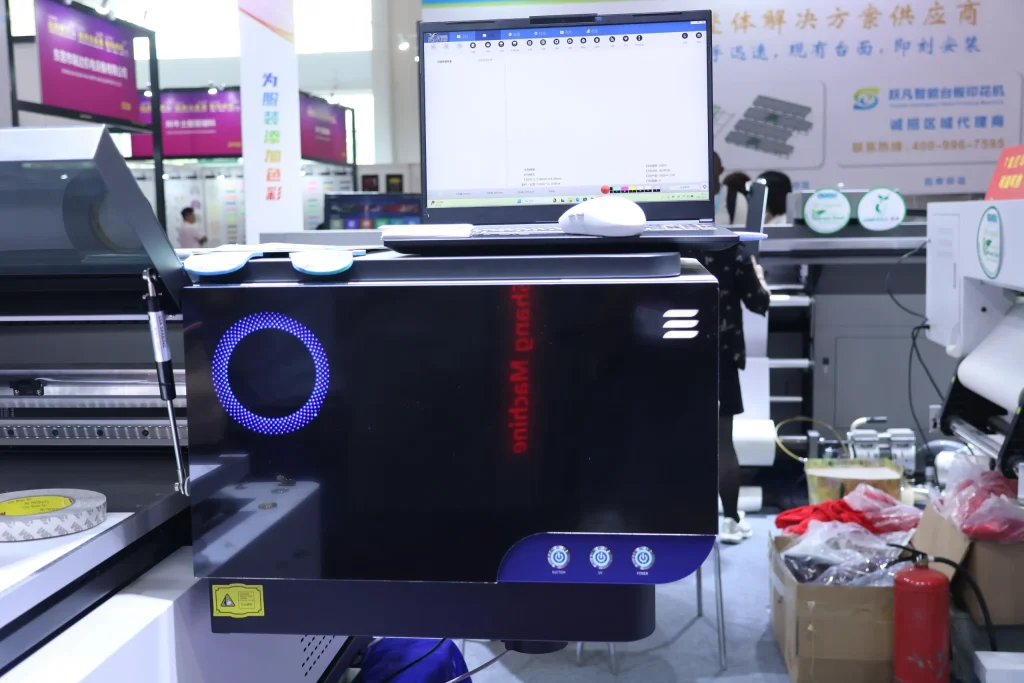

LED-UV curing · process consistency
- Low-heat LED-UV curing with auto-lift cleaning and standard file formats.
- Friendly environment window 20–28 °C / 40–60% RH.
Where H·EASY HY-6090 Excels
Rigid and cylindrical decoration on glass, metal, phones, drinkware and promo items.
HY-6090 Specifications
| Specification | HY-6090 |
|---|---|
| Print area | 600 × 900 mm |
| Printheads | 3 heads - color / white / varnish; Epson i3200-U1 or i1600-U1 engine |
| Ink configuration | CMYK + White + Varnish (white and varnish optional) |
| Resolution | 720 × 1800 dpi |
| Speed (i3200-U1) | 4-pass 9 m²/h · 6-pass 7 m²/h · 8-pass 5 m²/h |
| Speed (i1600-U1) | 4-pass 5 m²/h · 6-pass 4 m²/h · 8-pass 3 m²/h |
| Curing | LED-UV light curing |
| Media thickness (Z-axis) | Up to 100 mm standard, 150 mm optional |
| Cylindrical objects | Ø 30–120 mm via rotary jig (optional) |
| Machine size (L × W × H) | 1680 × 1640 × 1080 mm |
| Weight | 220 kg net |
| Power | AC 220 V ±10% · single phase · 50/60 Hz · 2.8 kW |
| Connectivity | USB 2.0 |
| Operating environment | 20–28 °C · 40–60% RH |
