HY-702 UV 65cm UV-DTF Printer
UV-DTF is a non-textile transfer process: a UV-cured White + CMYK + Varnish stack prints on A/B film and laminates as a sticker onto glass, metal, plastic or wood - no heat press, no fabric.
The HY-702 UV is the 65 cm production machine for that process - a 3-head color / white / varnish architecture (XP600 or i3200-U1 engine) with water-cooled UV curing and auto feed / take-up for long, unattended runs.
Overview
The HY-702 UV is a 65 cm UV-DTF transfer printer built around a three-head architecture (color / white / varnish) so a complete W + CMYK + V print stack comes off the machine in one pass. It targets UV-DTF labels and decal production for non-textile substrates - glass, metal, plastic, wood, gifts and sports goods.
30 cm or 65 cm - which UV-DTF width
Two UV-DTF widths cover different volumes, and the choice comes down to throughput and batch size:
- HY-401 30cm UV-DTF - a desktop machine with a single i3200-U1HD head at roughly 0.76-2 m²/h. Best for labels, decals, small batches and sampling.
- HY-702 UV 65cm (this page) - a 65 cm production machine with a 3-head color / white / varnish layout at 8-10 m²/h (4-pass). Best for continuous, long-run decal and label output.
Both share the same A/B-film process and hard-substrate range; pick by how much you need to produce.
Key features
- Three-head W / C / V architecture for one-pass white underbase, color and varnish - no separate varnish step.
- Dual engine option - Epson XP600 (entry) or Epson i3200-U1 (production) with corresponding 4-pass speeds of 8 m²/h and 10 m²/h respectively.
- Water-cooled UV chamber + LED UV lamp keeps cure stable across long runs and is gentler on film than uncooled UV.
- Auto feed and take-up with a heated pressure roller and pneumatic pressure adjustment for steady AB-film lamination.
- Hoson or BYHX industrial control over Gigabit Ethernet - runs unattended for long jobs with media-out alarm and anti-scratch head protection.
Process
Print W + color + varnish on the A film → UV cure → laminate to the B film → cold-transfer to glass / metal / plastic / wood. Varnish improves abrasion resistance and gloss; primer or plasma treatment further improves adhesion on difficult substrates.
Who it’s for
UV-DTF transfer producers serving labels, decals, gift personalization, sports goods and packaging decoration who need stable long-run output with one-pass varnish.
For the standard textile DTF workflow on the same width class, see the HY-702 60cm DTF printer. For a desktop UV-DTF setup, see the HY-401 30cm UV-DTF printer. For how UV-DTF compares with the standard textile DTF process, see the DTF vs UV-DTF guide.
Factory-direct manufacturer · OEM / ODM · in-house R&D and after-sales support
Why Choose H·EASY UV-DTF Printing
Dual engines optional · triple printhead architecture
Choose XP600 or i3200-U1; a 3-head C/W/V architecture balances quality and durability.
Transparent real production capacity
Clear throughput: 8/10 m²/h (4-pass), 5/6 m²/h (6-pass), 2.5/3 m²/h (8-pass) for XP600 / i3200-U1.
65 cm wide · A/B film workflow
650 mm effective width tailored for UV-DTF A/B film workflows.
Water-cooled UV chamber + LED lamp
Water-cooled UV box + LED for stable curing, longer lamp life and gentler media handling.
Heated pressure roller + pneumatic adjustable pressure
A heated rubber roller with pneumatic pressure control improves feeding stability and adhesion.
Stable online, low maintenance burden
CISS, media-out alarm, anti-scratch, and auto feed/take-up keep uptime high.
Engineered for production
Print engines & head layout · XP600 / i3200-U1 · 3-head C/W/V
- Choose XP600 or Epson i3200-U1 according to the required output class.
- Separate color, white and varnish heads produce the W + CMYK + V stack in one pass.

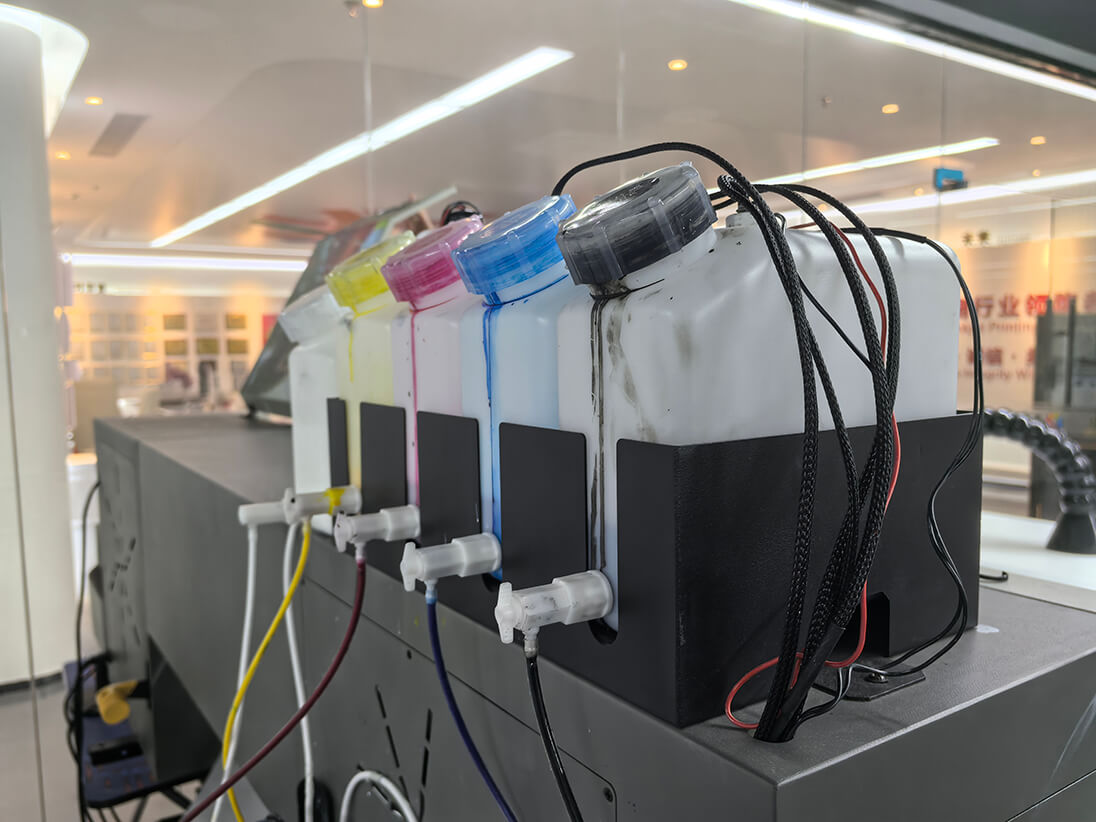

Stable automatic ink supply · color, white and varnish
- Continuous ink supply supports the three-head color, white and varnish architecture.
- Media-out alarm, anti-scratch protection and auto feed/take-up support long jobs.
Where H·EASY HY-702 Excels
UV-DTF A/B transfers decorate hard and curved surfaces without heat pressing.
HY-702 Specifications
| Specification | HY-702 |
|---|---|
| Print width | 650 mm (65 cm) |
| Printheads | 3 heads - color / white / varnish; XP600 or Epson i3200-U1 engine |
| Ink configuration | W + CMYK + V (option A); G + W + CMYK + G + V (option B) |
| Print speed (XP600) | 4-pass 8 m²/h · 6-pass 5 m²/h · 8-pass 2.5 m²/h |
| Print speed (i3200-U1) | 4-pass 10 m²/h · 6-pass 6 m²/h · 8-pass 3 m²/h |
| Curing | Water-cooled UV chamber + LED UV lamp |
| Media | UV-DTF A/B transfer film |
| Control system | Hoson or BYHX, Gigabit Ethernet |
| Feed system | Heated rubber roller, pneumatic-adjustable pressure, auto feed / take-up |
| Power | AC 220 V · 50/60 Hz · 2000 W |
| Machine size (L × W × H) | 1780 × 900 × 1320 mm |
| Operating environment | 22–28 °C · 40–60% RH |
