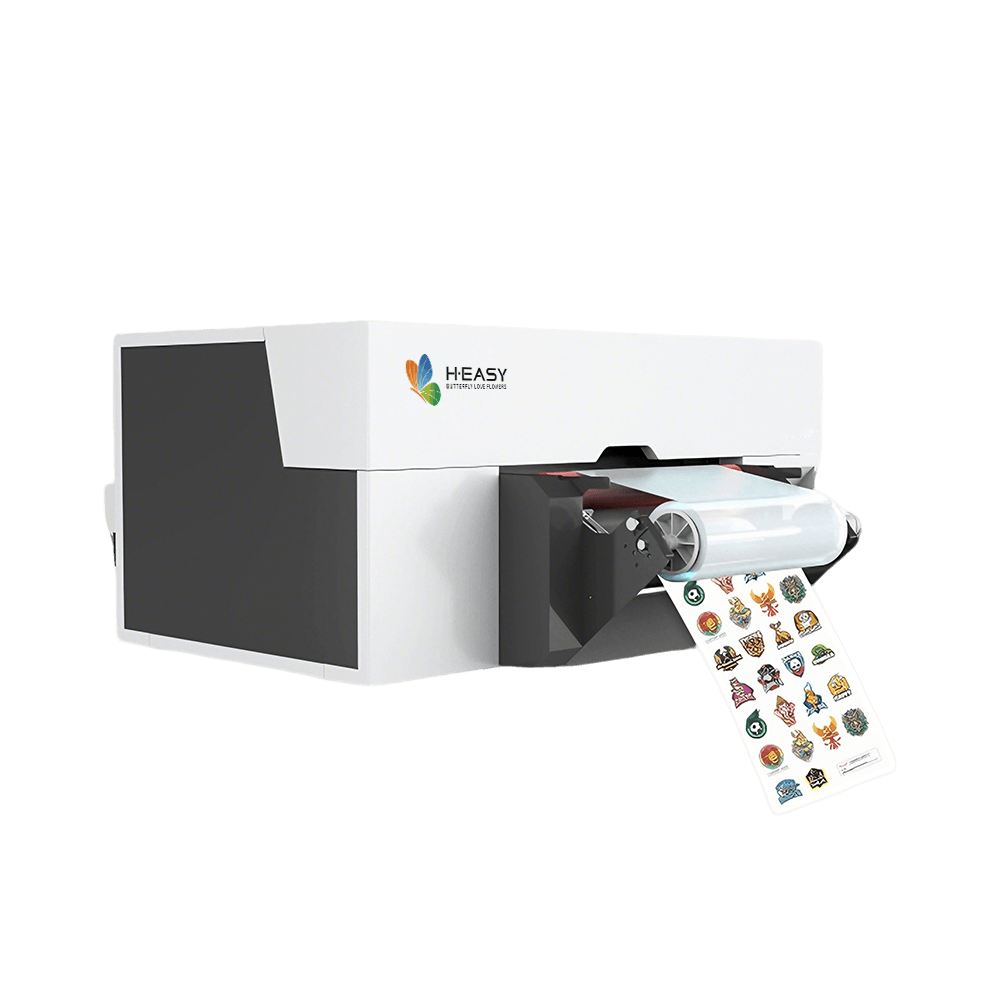

HY-401 30UV 30cm UV-DTF Printer
Single i3200-U1HD head, 30cm width, CMYK + White + Varnish in one pass - desktop UV-DTF for labels and decals.
Overview

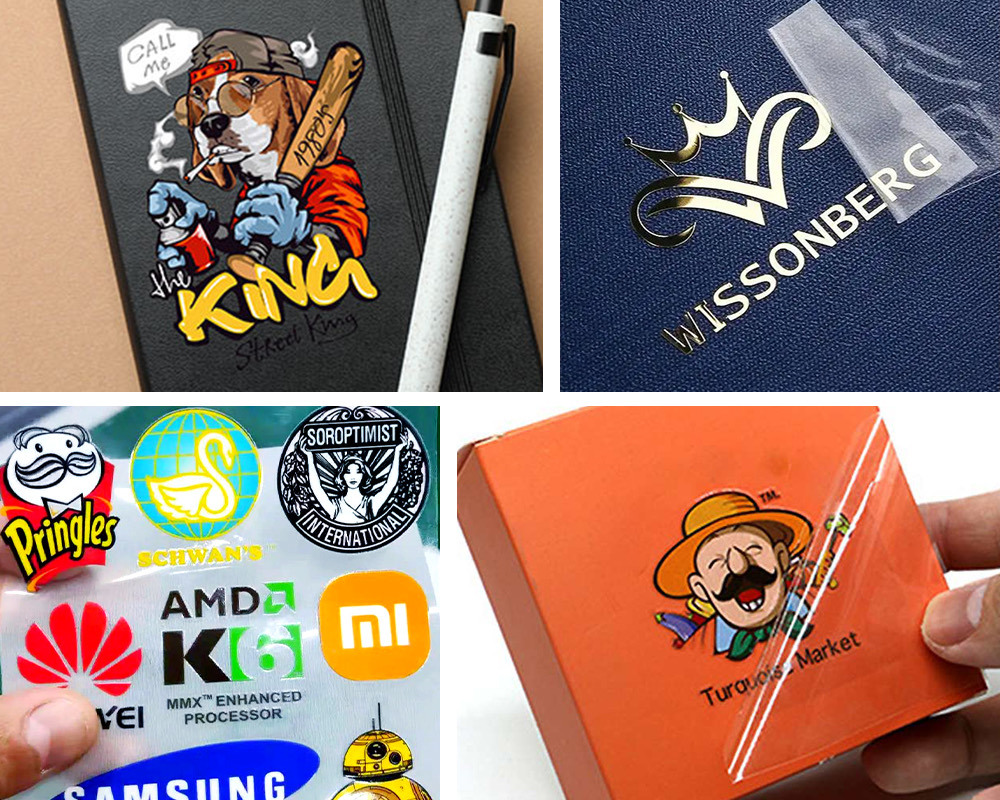

The HY-401 30UV is a 30 cm desktop UV-DTF printer built around a single Epson i3200-U1HD industrial UV printhead with multi-level greyscale. It prints CMYK + White + Varnish in one pass, sized for sampling, prototyping and small-batch UV-DTF transfer production - labels, phone cases, mugs, home décor decals and similar non-textile decoration.
Process
Print W + CMYK + V on the A film → laminate online → rewind / cure → cold-press with the B film → transfer onto the target substrate. Run ambient at 20–28 °C and 35–65% RH for stable lamination.
Who it’s for
Decal and label producers, gift personalizers, and contract printers prototyping UV-DTF jobs alongside larger production gear.
Need more width or a varnish line for production? See the HY-702 UV 65cm UV-DTF printer. For the standard textile DTF workflow at the same width, see the HY-401 30cm DTF printer. For how UV-DTF compares with the standard textile DTF process, see the DTF vs UV-DTF guide.
Factory-direct manufacturer · OEM / ODM · in-house R&D and after-sales support
Why Choose H·EASY UV-DTF Printing
Industrial Epson i3200-U1HD
Industrial Epson i3200-U1HD with multi-level grayscale for crisp details and smooth gradients in long runs.
CMYK+White+Varnish in one pass
Build opaque white, rich color and spot or overall varnish in one pass, without extra passes.
Compact 30 cm throughput
Compact 30 cm throughput for A4/A3 jobs; 0.76–2 m²/h depending on resolution and coverage.
Versatile media
UV-DTF A/B film, release film and soft roll materials; decals apply to phones, mugs, glass, metals and more.
Stable ink supply & network connectivity
Smart inking & Ethernet connectivity, with common file formats supported.
Compact size · easy to use & maintain
Small footprint and simple operation; runs best at 20–28 °C / 35–65% RH.
Engineered for production
Epson i3200-U1HD UV engine · multi-level grayscale
- 3,200-nozzle industrial Epson engine with 3.6-12.5 pl variable droplets.
- 960 × 1200 dpi and 960 × 900 dpi modes trade speed against fidelity.

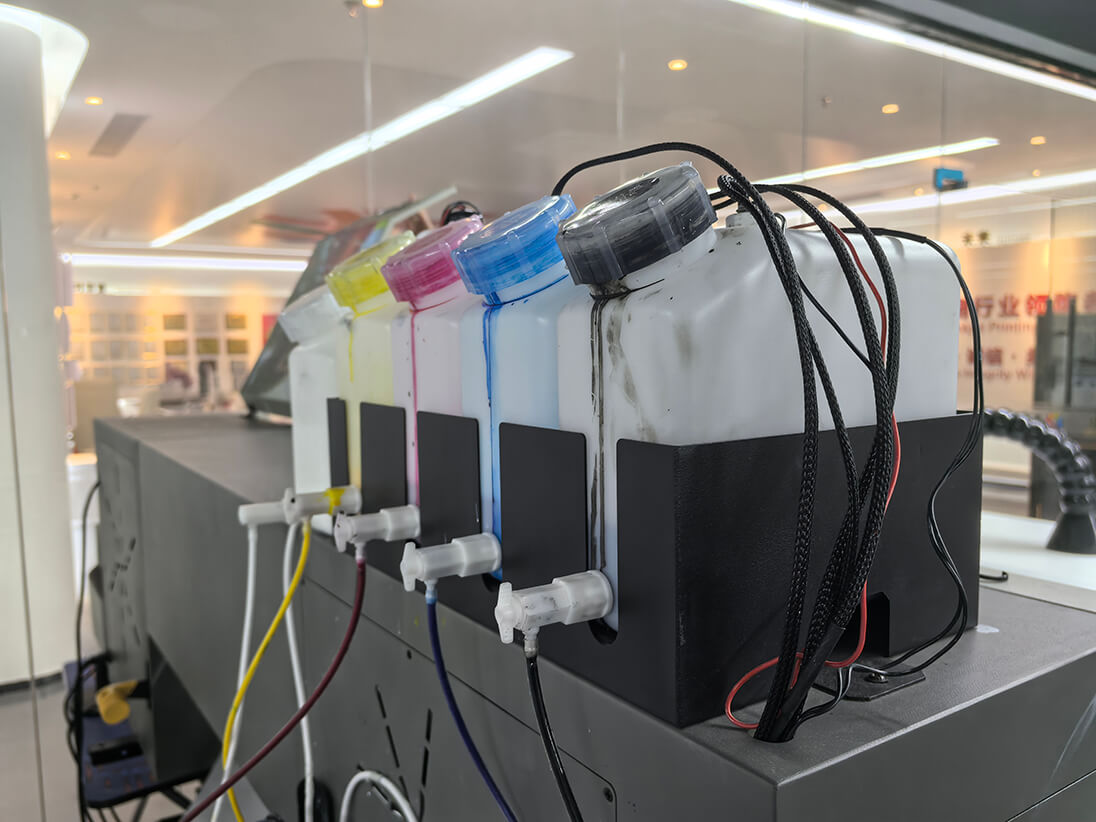

Stable automatic ink supply · KCMY + White + Varnish
- Smart automatic inking keeps white and varnish channels fed on long runs.
- White underbase and varnish print in the same pass as the color layer.
Where H·EASY HY-401 Excels

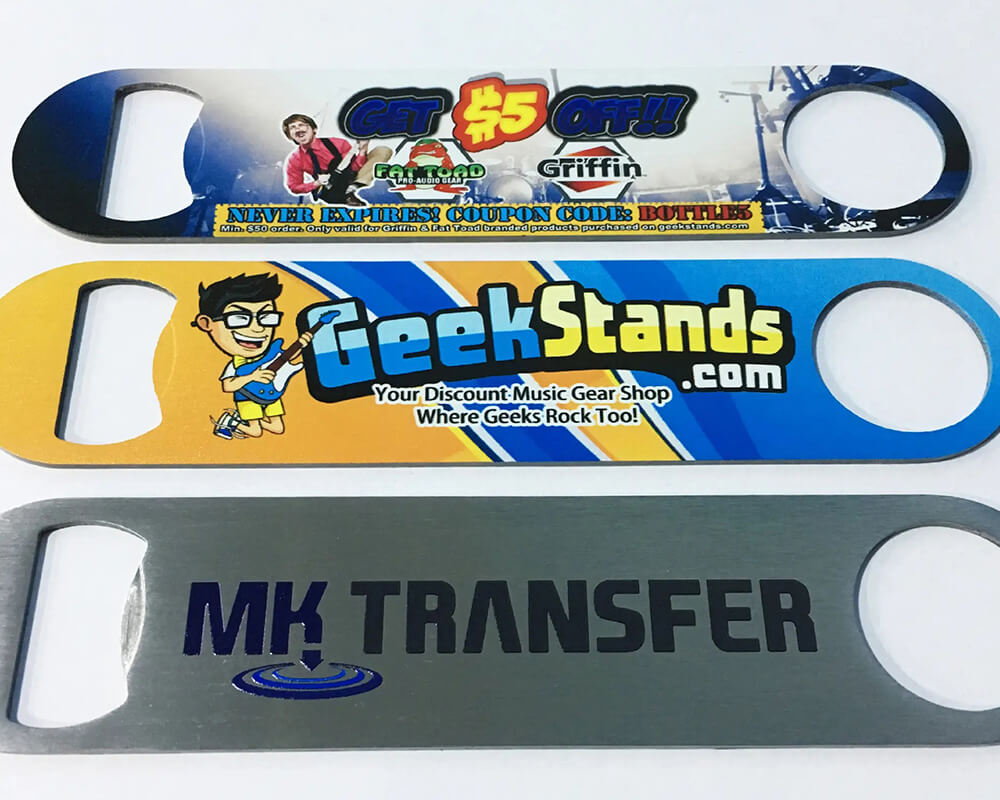

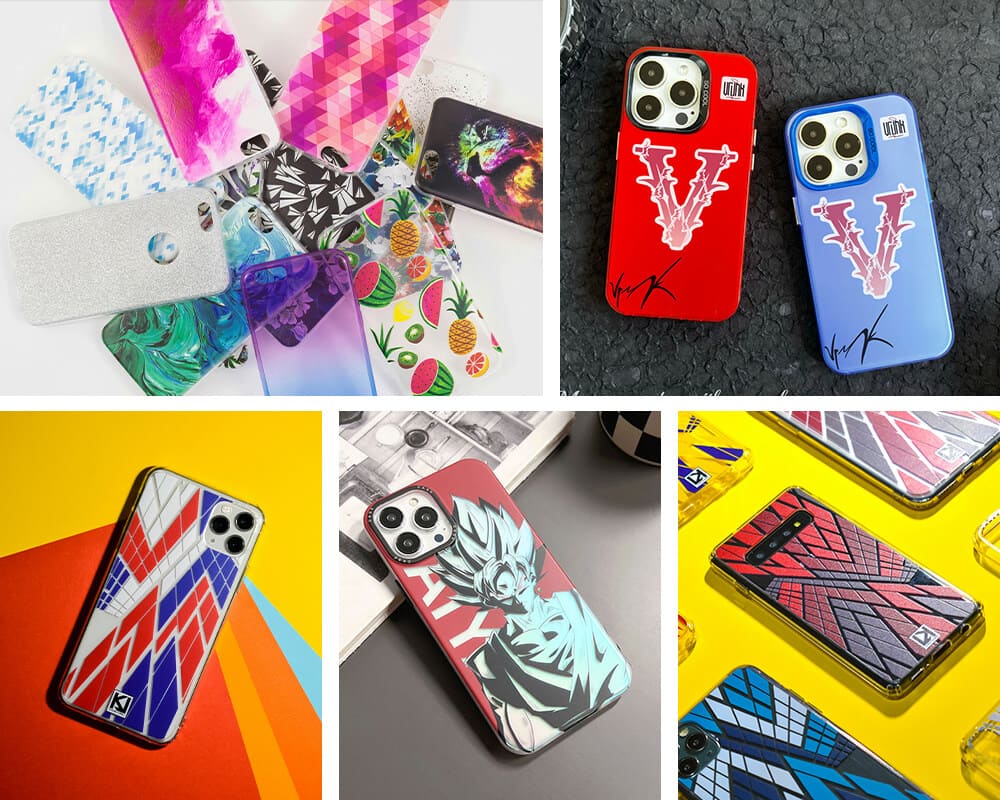

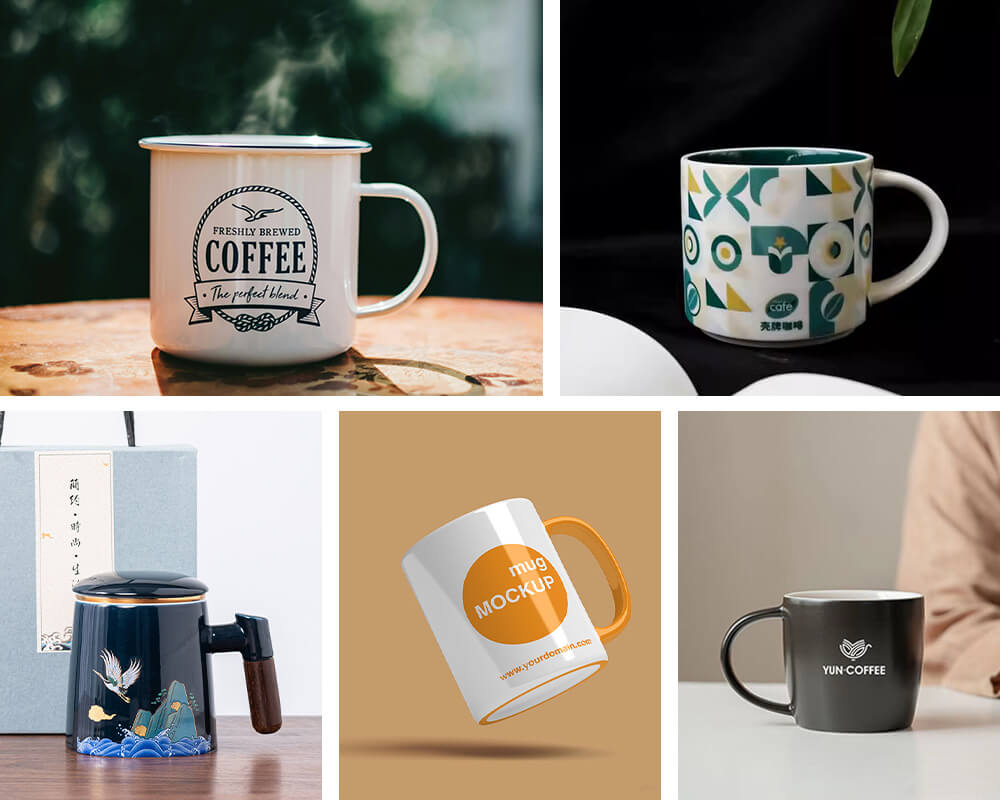

A4/A3 desktop UV-DTF for small-batch, any-surface decals: phones, mugs, metal, footwear and packaging.
HY-401 Specifications
| Specification | HY-401 |
|---|---|
| Print width | 300 mm (30 cm) |
| Print depth | 0–1 mm (thin films and release film) |
| Printheads | 1 × Epson i3200-U1HD (industrial UV) |
| Nozzles | 3200 nozzles per head |
| Channels | Up to 8 - K + C + M + Y + White + Varnish |
| Print mode | KCMY + W + V (one-pass with white underbase) |
| Resolution | 960 × 1200 dpi or 960 × 900 dpi |
| Variable droplet | 3.6–12.5 pl multi-level greyscale |
| Print speed | 0.76 – ~2 m²/h depending on resolution and pass count |
| Media | UV-DTF A/B film, release film, soft adhesive roll |
| RIP / interface | Future RIP, Gigabit Ethernet, TIFF / JPG / EPS / PDF |
| Power | AC 220 V ±10% · 50/60 Hz |
| Machine size (L × W × H) | 919 × 980 × 450 mm |
| Weight | 75 kg net (100 kg gross, crated) |
| Operating environment | 20–28 °C · 35–65% RH |
